Compact printing
Top, bottom, coupler and avionics sled are sized to fit a 256 mm printer.
Peregrine Mini · Open-source engineering
The smaller sibling, designed around 5-inch props.
A compact open-source VTOL FPV tail-sitter with the Peregrine family shape, a bought clear camera dome and a removable avionics sled. Designed around parts that fit a 256 mm printer.
VTOL FPV3D-printed airframeSTEP CAD
Project status
CAD design only; not yet printed or flown.
5-inchPropeller format
About 265 mmDesign length
4 motorsQuad tail-sitter
Design, document, share
CAD, electronics and software in one project.
The Mini keeps the curved root fairings, tapered wings and swept canards in a smaller airframe, with short tapered motor pods. The top and bottom join through a keyed twist-lock coupler, while a removable sled carries the electronics. The short pods are not landing feet: an upright launch support is required and is not included in the CAD files.

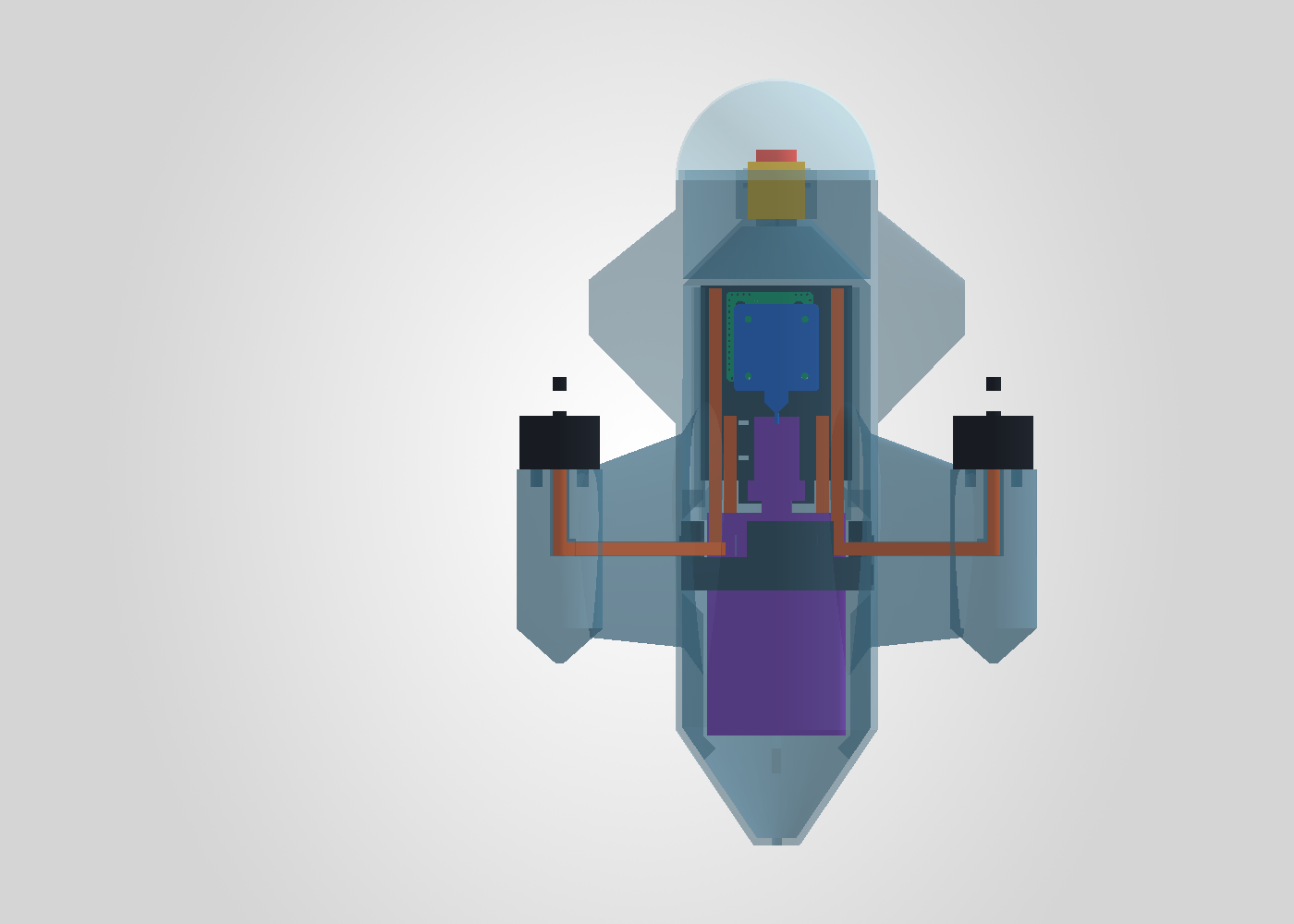

Motor-lead routes have been modelled and interference-checked. The Mini has no airflow study or flight-test results yet, and the VTX antenna position remains an open design item.
Developed with CAD and AI-assisted design tools, and shared for hobby makers to study and develop. Both versions are unbuilt designs awaiting physical validation.
Inside the design
Practical details, openly documented.
Serviceable electronics
A removable sled gives access to the flight-controller stack and receiver.
Camera and GPS
A pivoting camera cradle and GPS shelf sit beneath a bought clear dome.
Documented routes
The repository includes STEP files, a bill of materials and motor-lead routing notes.
The Peregrine family
Two sizes. One design approach.
| Design | Peregrine | Peregrine Mini |
|---|---|---|
| Propellers | 7-inch | 5-inch |
| Length | About 460 mm | About 265 mm |
| Body | 100 mm diameter | 70 mm diameter |
| Battery specification | 6S 2200 mAh | 6S 1300 mAh |
| Printing | Rev 2 parts designed for a 250 mm printer | Printed parts designed for a 256 mm printer |
| Status | CAD complete; first build and flight tests pending. | CAD design only; not yet printed or flown. |
Open project files
Explore the design and its documentation.
The public repository contains STEP design files, renders, a bill of materials and wiring notes. Hardware and documentation are shared under CC BY-SA 4.0; see the repository for software licences and current design limitations.
